Shocker Hitch Vertical Channel Weld-On Tongue Adapter for Trailer A-Frames - Heavy Duty 20,000 lbs GTW Capacity - 2 Sides, Base & Vertical Channel Components - Perfect for Towing Equipment, Utility Trailers & Off-Road Applications

$68.16

$90.89

Safe 25%

Shocker Hitch Vertical Channel Weld-On Tongue Adapter for Trailer A-Frames - Heavy Duty 20,000 lbs GTW Capacity - 2 Sides, Base & Vertical Channel Components - Perfect for Towing Equipment, Utility Trailers & Off-Road Applications

$68.16

$90.89

25% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

8 people viewing this product right now!

SKU: 84688007

Guranteed safe checkout

Description

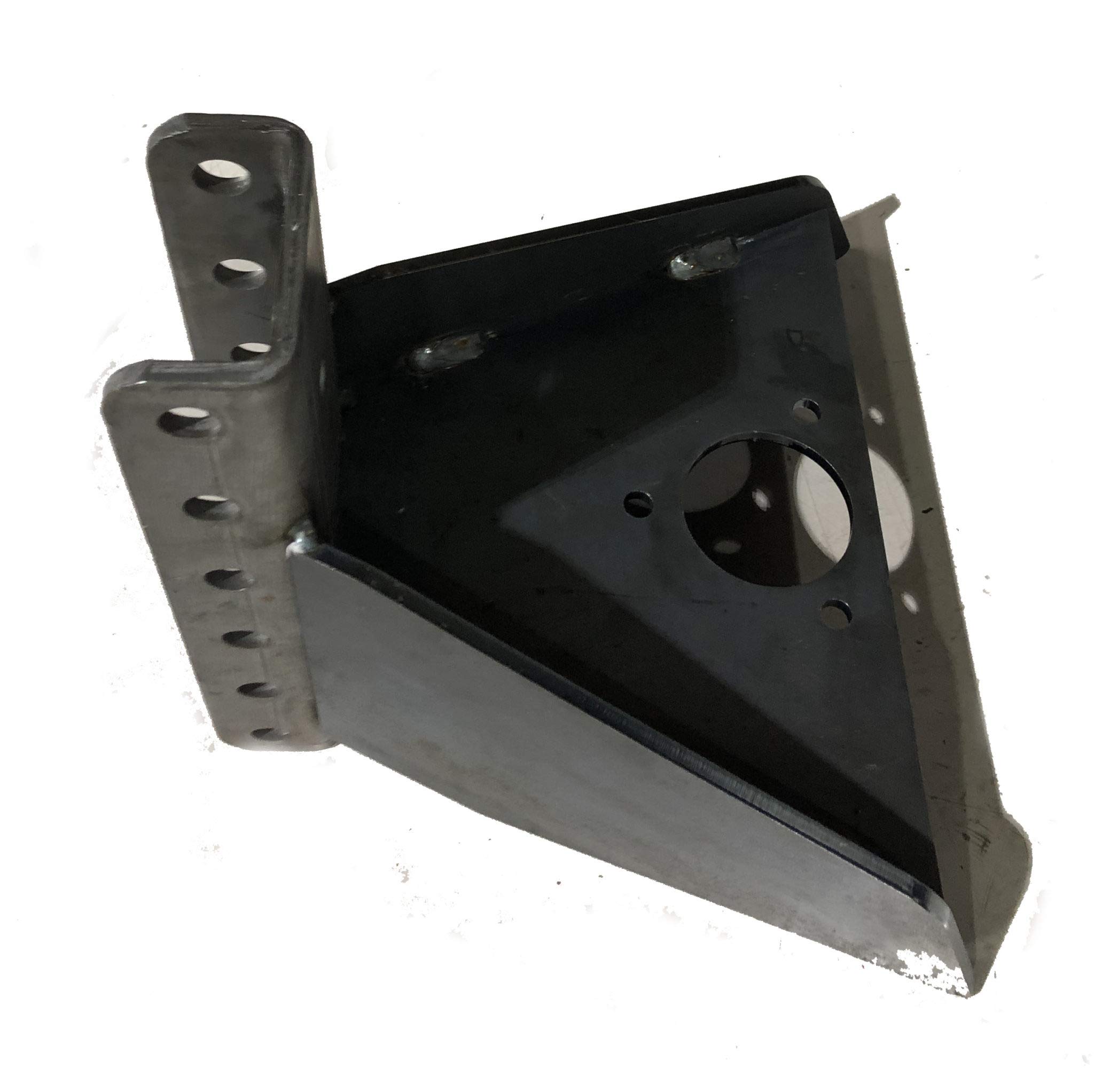

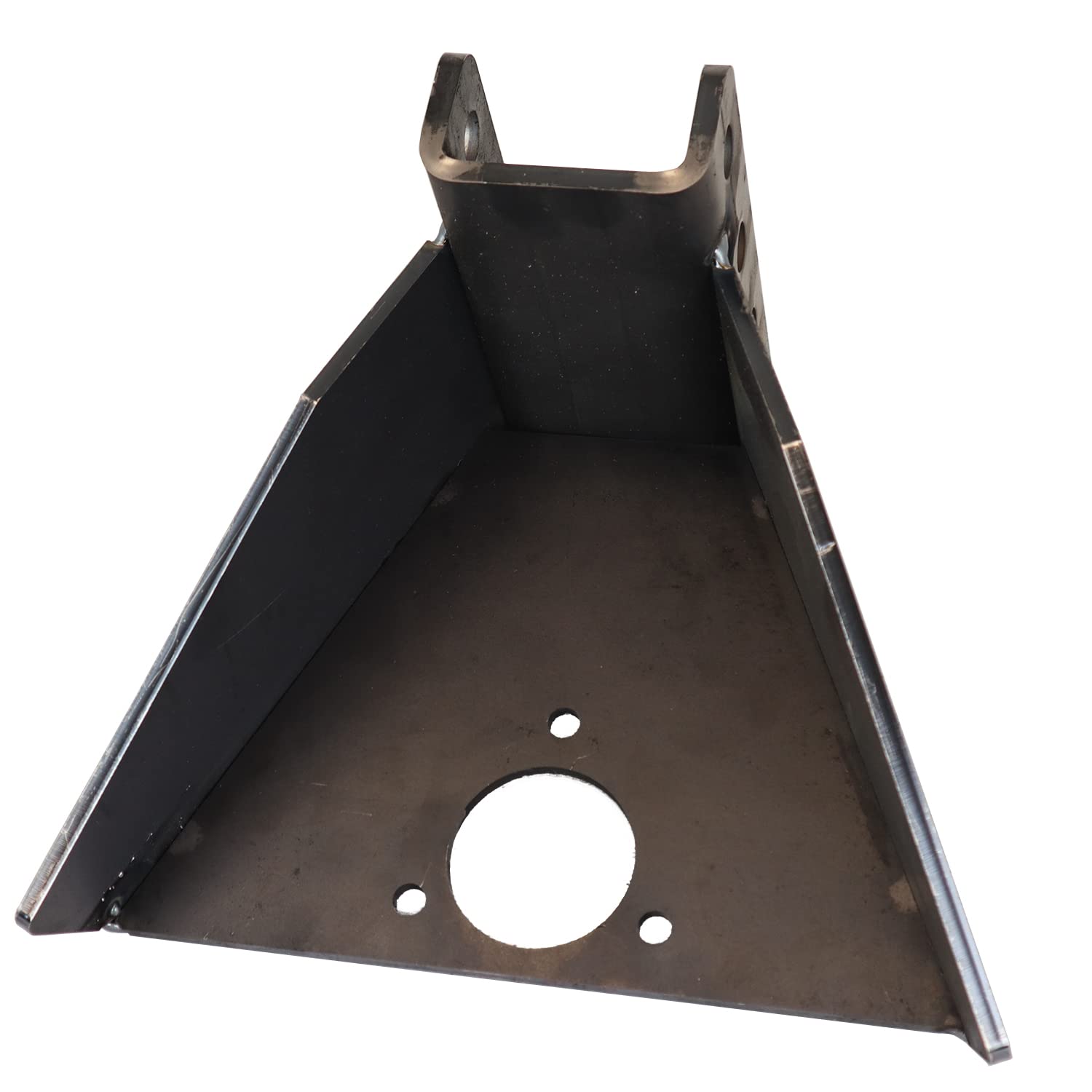

The Trailer Tongue Vertical Channel mount adapter for your trailer a-frame is a weld on adapter that converts your typical horizontal trailer tongue to accept a vertical channel type coupler. This weld on vertical channel mount has 6 adjustment holes. The six bolt hole pattern works great with typical vertical channel trailer couplers. Available completely welded, spot welded or just the components. Perfect for modifying a trailer or when building a custom trailer. The outer front is 4" wide, the outer rear is 11" wide. From front to back it measures 7-1/2".Weight Rating: If you are using 2 bolts to attach trailer coupler then its 14,000 lbs if using 4 bolts then 20,000 lbs that also assumes this kit is properly welded onto the trailer and the coupler you are using can handle those respective capacities.This is heavy duty unit that in most cases exceeds factory towing weight capacities, therefore it?s important you read and follow the tongue & tow weight recommendations of the truck it is mounted on, hitch & ball rating, the trailer coupler rating & the ratings of the trailer you are towing. It also requires professional welding onto the trailer for the weight rating to be applicable.California Resident: Prop 65 Warning

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

Trailer Tongue Vertical Channel Style Weld On Adapter for Trailer A-Frame. Trailer Tongue Vertical Channel Style Weld On Adapter for Trailer A-Frame.

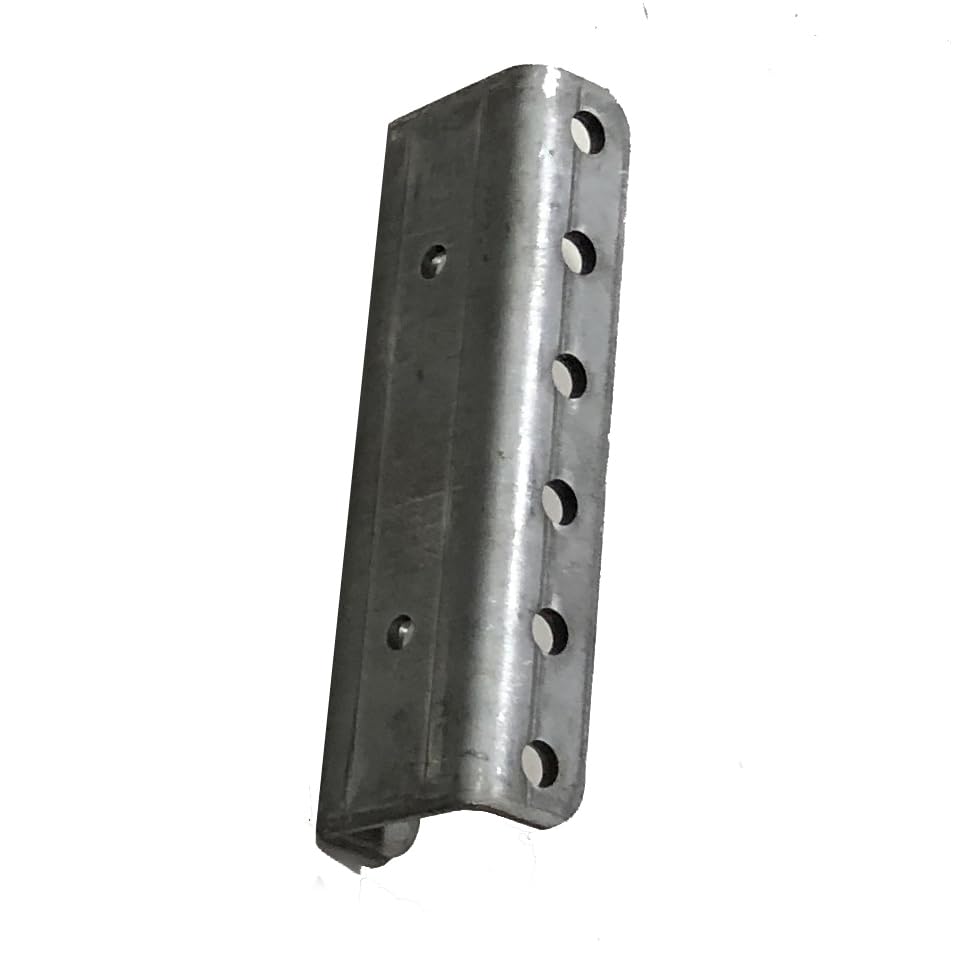

Equipped with 6 Adjustment Holes. Raw Steel. The six bolt hole pattern works great with typical vertical channel bolt on trailer couplers. Actual vertical channel is 3-1/2" x 11-3/4" w/ 2" on center bolt pattern

The outer front is 4" wide, the outer rear is 11" wide. From front to back it measures 7-1/2". Weight Rating If you are using 2 bolts to attach coupler then its 14,000 lbs if using 4 bolts then 20,000 lbs that also assumes this kit is properly welded onto the trailer and the coupler you are using can handle those respective capacities.

Allows you to convert your trailer a-frame to one that accepts Vertical Channel couplers. Professional Welding required for install. This is heavy duty unit that in most cases exceeds factory tow weight capacities. It?s important you follow the tongue & tow weight recommendations of the truck it is mounted on, hitch, ball, coupler ratings & the ratings of trailer you're towing. Requires professional welding onto the trailer for the weight rating to be applicable.

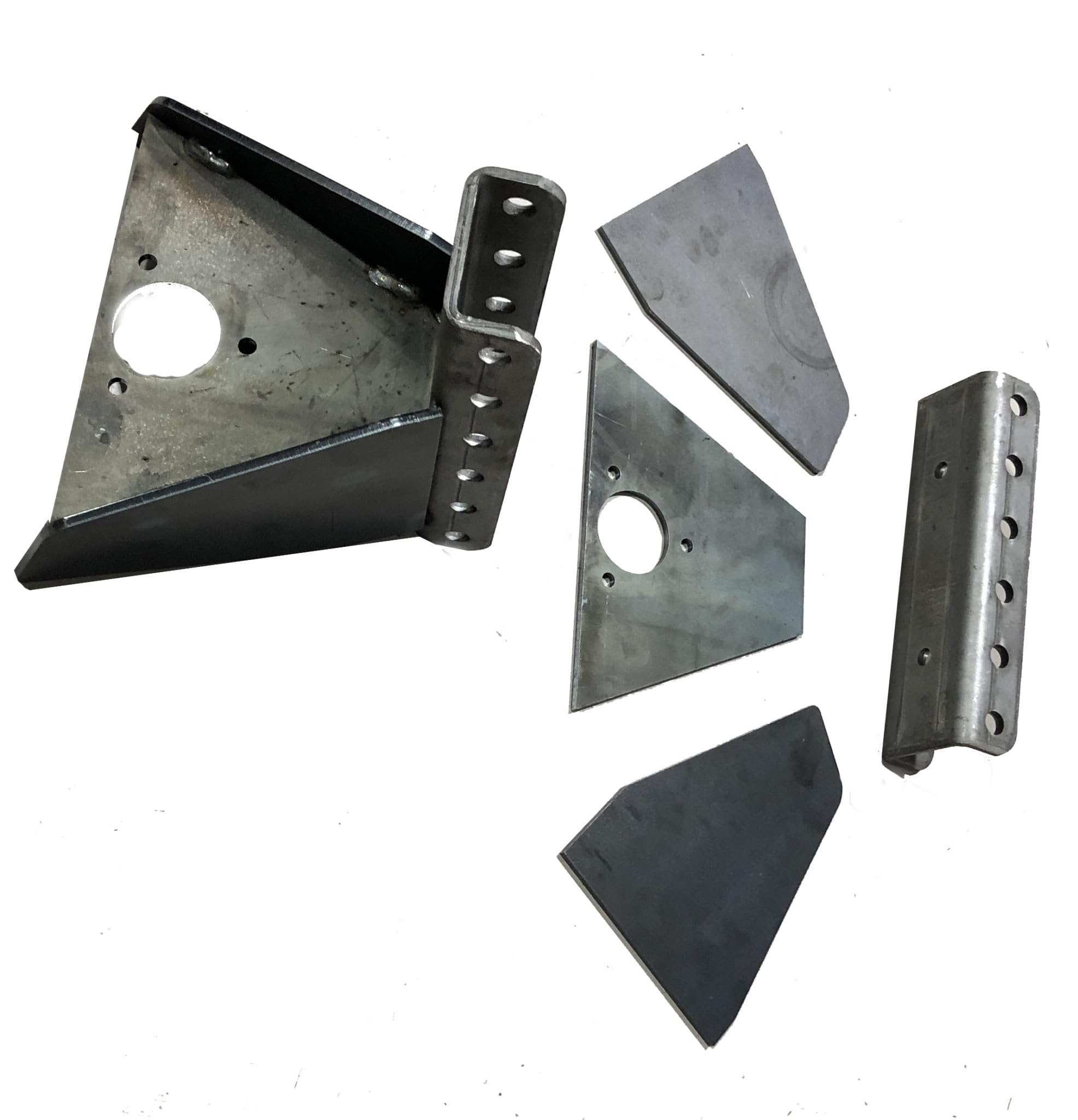

3 Style to choose from - Completely Welded, Spot Welded & Components Only (2 Sides,Base & Vertical Channel). Made in the USA with Premium Grade Steel. From Shocker Hitch - Jamestown, ND
